This 100% Polypropylene material is Douglas’s most popular windscreen fabric. Douglas’s superior fabrication and attention to detail is proven with their unique extra-strong reinforced hems –the strongest in the industry. Low-maintenance material offers classic good looks, and highly durable performance. Polypropylene material is heat-set so your screens will never shrink or change shape. Weather and UV protection is extruded into every fiber of the Polypropylene windscreen for maximum performance and long life.
Windscreens are available in standard 6 ft and 9 ft heights and in custom heights by request. Screen length is completely custom and made to order to the nearest inch; 60 ft is the maximum recommended length per panel.
Vinyl Coated Polyester MAX Material Specifications:
Fabric – Open: 28 x 14 leno weave | Closed: 30 x 16 leno weave
Windbreak – Open: 85% | Closed: 95%
Weight per sq yard – Open: 5 oz | Closed: 6 oz
Tensile Strength – Open: 250 x 170 | Closed: 350 x 215
Extra Strong Hems

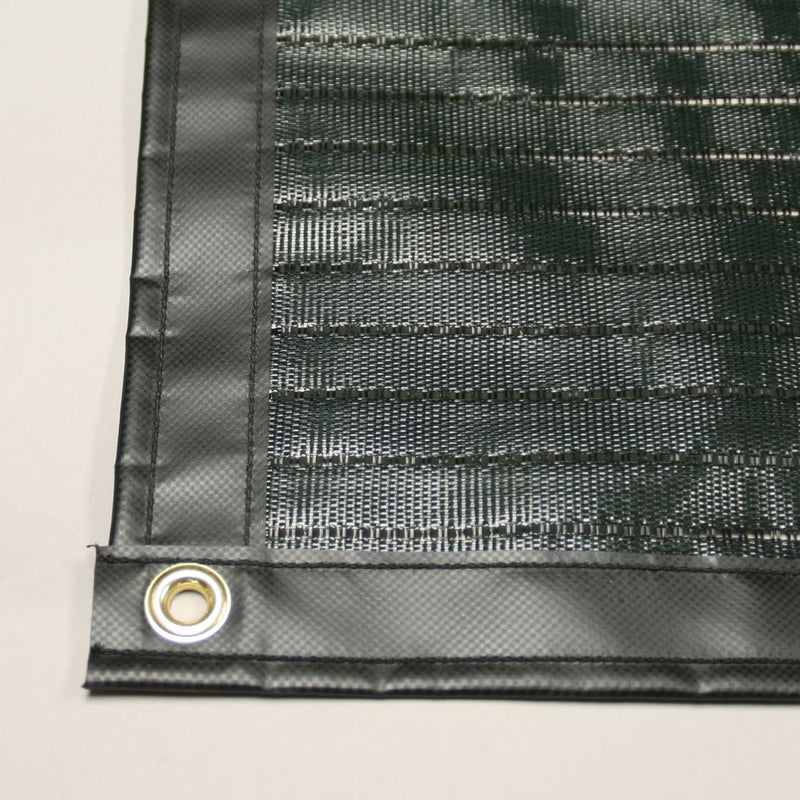

VCP windscreen material is hemmed with Douglas’s 3-ply extra-strong hems. These durable hems are seemed with solid vinyl inserts that are double sewn to 1-1/2 inches wide. The #2 brass grommets are spaced every 12 inches on panel sides and every 18 inches along the top and bottom.
When installing windscreens, center reinforcement is recommended for anti-billowing on all panels that are taller than 6 ft and where strong winds prevail. Center reinforcement allows the screen to be secured to the middle of the fence with tie wraps or lacing cord attachment. All Sport Screens by Douglas® over 6 ft in height include a center tab with grommets. Center tabs on Vinyl Coated Polyester are sewn with 18 oz black vinyl and grommets are placed every 18 inches to secure the screen to the fence. The reinforcement tab is only visible on the backside of the fence screen for a cleaner installed appearance.
