Douglas VCP MAX Premium: Vinyl Coated Polyester MAX Windscreen
VCP Max goes one step further than the standard Vinyl Coated Polyester windscreen by offering maximum tensile strength and visual blockage. At 85% windbreak, VCP Max allows more airflow than closed mesh screens, but provides a better visual background than open mesh screens. This versatile and attractive windscreen fabric is durable and boasts great weather resistance.
Windscreens are available in standard 6 ft and 9 ft heights and in custom heights by request. Screen length is completely custom and made to order to the nearest inch; 60 ft is the maximum recommended length per panel.
Vinyl Coated Polyester MAX Material Specifications:
Fabric: 50% vinyl, 50% polyester – 16 x 17 weave
Windbreak: 85%
Weight per sq yard: 10 oz
Tensile Strength: 395 x 401
For Reference: Standard VCP Windscreen Specs
Fabric: 50% vinyl, 50% polyester – 9 x 12 weave
Windbreak: 80%
Weight per sq yard: 8 oz.
Tensile Strength: 230 x 200
Extra Strong Hems

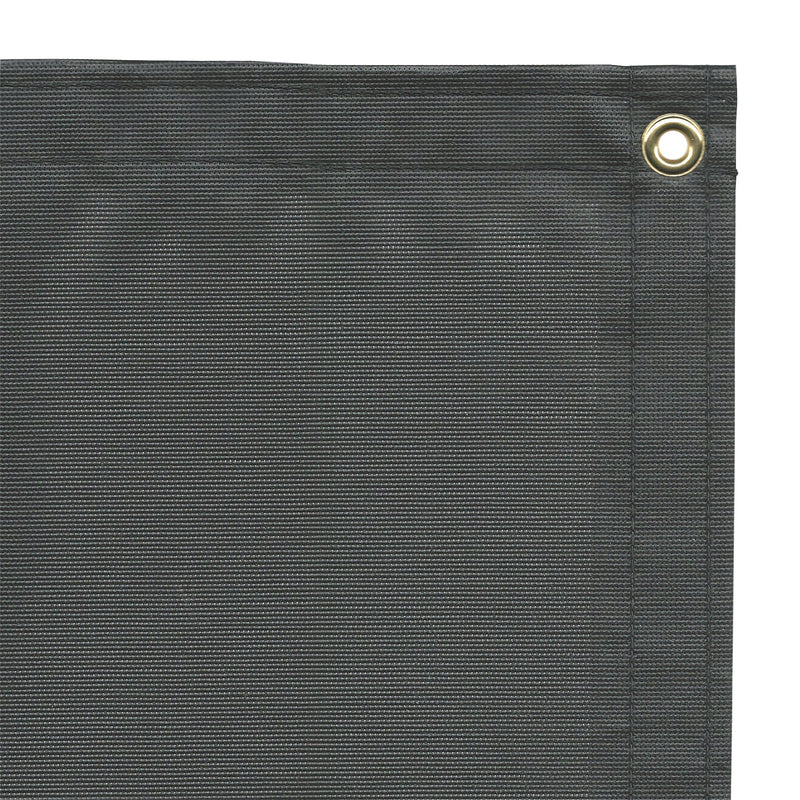

VCP windscreen material is hemmed with Douglas’s 3-ply extra-strong hems. These durable hems are seemed with solid vinyl inserts that are double sewn to 1-1/2 inches wide. The #2 brass grommets are spaced every 12 inches on panel sides and every 18 inches along the top and bottom.
Center Reinforcment
When installing windscreens, center reinforcement is recommended for anti-billowing on all panels that are taller than 6 ft and where strong winds prevail. Center reinforcement allows the screen to be secured to the middle of the fence with tie wraps or lacing cord attachment. All Sport Screens by Douglas® over 6 ft in height include a center tab with grommets. Center tabs on Vinyl Coated Polyester are sewn with 18 oz black vinyl and grommets are placed every 18 inches to secure the screen to the fence. The reinforcement tab is only visible on the backside of the fence screen for a cleaner installed appearance.
Additional Customizations Available On Request*
- Air Vents: Rectangular Sewn or Half Moon Diecut at 10' intervals
- Vibrant Full Color Digital Windscreen Printing
- Specialty and customizations may incur additional costs
